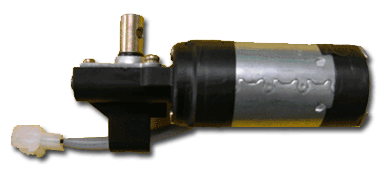

Product Name : Room Lock Motor
Model No : KIC - 206 - 1004/1005 (LH/RH)

Specification
Rated Voltage : 12 V DC
No load Current : Max. 5.0 A
No load Speed : 150 ± 20 rpm
Load (2 Nm) Current : Max.10 A
Load (2 Nm) Speed : 120 ± 15 rpm
Stall Current : Max. 25A
Stall Torque : 6 ~ 10 Nm


Feature :
Compact & Slim & Light
Diversified Application Possible
Easy Access

Application :
2001 ~ Heavy Duty Vehicle, Special Vehicle for Changeable Room Space Industrial & Automotive Usage

Contact Information :
Contact ; Jeong Yeob Koo, Marketing
265, Seongwol-Ri, Seonghwan-Eup, Cheonan City, Chungnam
Korea, Republic 330-804


Homepage : www.daesanenc.co.kr

Tel ) +82-41-588-1100 ( 5 Lines )
Fax) +82-41-588-1104
Cell) +82-16-783-8089
